Stage ERC 212b - 220b

Electric pedestrian controlled truck 1.2 - 2t

  • 2400 - 6000 mm
  • 1200 - 2000 kg
  • Powerful, maintenance-free 3-phase AC drive motor.
  • Lifting of enclosed pallets or cross pallets.
  • Proportional hydraulics for accurate lifting and lowering.
  • Safe operation at crawl speed with the tiller raised.
  • Customised adaptation to a wide variety of applications.

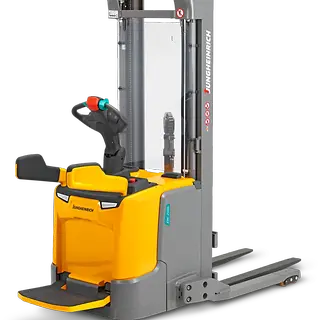

ERC 212b - 220b

The flexible and efficient ERC 2b pedestrian stackers are specifically designed for the handling of special goods. Their support arms are laterally offset and their forged forks can be lowered completely to the ground. This makes it possible to pick up load units from below. The forks are available in different variations. Our assistance systems also guarantee the following: operationCONTROL warns the operator when the residual capacity is exceeded, while positionCONTROL enables the selection of a predefined lifting height for safe and efficient load handling. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo at heights up to 6 metres. In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lifting height preselection positionCONTROL ensure more safety and efficiency in everyday warehouse operations.

Benefits

Telematik Box Erd

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
ERC 212b 1,200 kg 4,700 mm 11 km/h 2,030 mm 24 V
ERC 214b 1,400 kg 6,000 mm 11 km/h 2,123 mm 24 V
ERC 216b 1,600 kg 6,000 mm 11 km/h 2,123 mm 24 V
ERC 220b 2,000 kg 6,000 mm 10 km/h 2,123 mm 24 V
