Forklift 2-3.5t

3000 mm
3500 kg

Powershift 1/1 -speed automatic transmission is standard
High Dependability Diesel Engine: Retaining the well-regarded performance levels of the esteemed TCM Diesel Engine, the iNOMA series now integrates eco-friendly enhancements

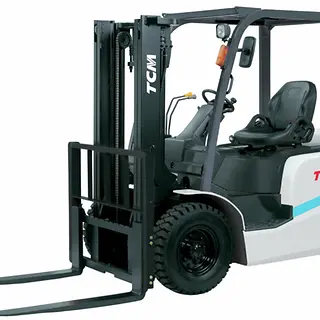

iNOMA 2.0-3.5

Second to None, Revolutionary Forklift Trucks – Freshly Debuted Succeeding TCM traditional product concepts of superb performance and quality, we hereby announce a new type of Forklift, offering incomparable ruggedness and operator-friendly features. It’s the newly Debuted iNOMA. we have fully upgraded and redesigned iNOMA for easier access, greater comfort, improved maneuverability, assured safety, longer durability. Thanks to TCM outstanding technological expertise and strengths, the iNOMA Forklift truck achieves optimum performance for its class and safety.

Features

Excellent performance, powerful lifting capacity

Constructed with a low centre of gravity frame that optimises vehicle balance and stability during lifting.
That means a greater load capacity with much greater stability.
The high-torque, high-power engine maintains a stable lift speed regardless of the load, increasing productivity.

Smooth Running

The high-power engine and the high-performance transmission are perfectly matched to produce an extremely smooth start/acceleration as well as excellent traction even on uphill slopes.
Excellent braking and stopping control are provided by a robust and reliable due-servo system.

Fully hydraulic power steering

The full hydraulic steering allows for effortless steering even if the truck is in a stationary position.

Power-train

The full floating power-train is designed to reduce vibration.
The entire power-train is supported by absorbing rubber mounts.

Easy entry and exit from an extra wide step

The enlarged foot step enables greater comfort getting on and off the truck.

High-mounted rear combination lights

The brake lights are easily visible at the top of the overhead guard. Recessed for protection, they are vibration resistant for long bulb life.

Convenient maintenance access

Maintenance is simplified with TCM Forklift Trucks, thanks to easily accessible engine covers and removable side panels. The tool-free design ensures that panel removal is quick and easy, allowing for hassle-free inspections and service.

Atomatic fork and gear security

For enhanced safety, the fork automatically locks when the ignition is turned off, staying firmly in place even if accidentally bumped. Additionally, a neutral safety lock ensures the forklift truck cannot start if left in gear.

Model Overview

Model	Load capacity	Lift height	Overall length
TCM FD20C3Z	2,000 kg	3,000 mm	2,485 mm
TCM FD20T3	2,000 kg	3,000 mm	2,485 mm
TCM FD25C3Z	2,500 kg	3,000 mm	2,555 mm
TCM FD25T3	2,500 kg	3,000 mm	2,555 mm
TCM FD30C3Z	3,000 kg	3,000 mm	2,705 mm
TCM FD30T3	3,000 kg	3,000 mm	2,705 mm
TCM FD35T3S	3,500 kg	3,000 mm	2,800 mm
TCM FG20C3	2,000 kg	3,000 mm	2,485 mm
TCM FG20T3	2,000 kg	3,000 mm	2,485 mm
TCM FG25C3	2,500 kg	3,000 mm	2,555 mm
TCM FG25T3	2,500 kg	3,000 mm	2,555 mm
TCM FG30C3	3,000 kg	3,000 mm	2,705 mm
TCM FG30T3	3,000 kg	3,000 mm	2,705 mm
TCM FG35T3S	3,500 kg	3,000 mm	2,800 mm
TCM FHD20C3A	2,000 kg	3,000 mm	2,485 mm
TCM FHD20T3A	2,000 kg	3,000 mm	2,485 mm
TCM FHD25C3A	2,500 kg	3,000 mm	2,555 mm
TCM FHD25T3A	2,500 kg	3,000 mm	2,555 mm
TCM FHD30C3A	3,000 kg	3,000 mm	2,705 mm
TCM FHD30T3A	3,000 kg	3,000 mm	2,705 mm
TCM FHG20C3	2,000 kg	3,000 mm	2,485 mm
TCM FHG20T3	2,000 kg	3,000 mm	2,485 mm
TCM FHG25C3	2,500 kg	3,000 mm	2,555 mm
TCM FHG25T3	2,500 kg	3,000 mm	2,555 mm
TCM FHG30C3	3,000 kg	3,000 mm	2,705 mm
TCM FHG30T3	3,000 kg	3,000 mm	2,705 mm

Downloads

iNOMA+2.5-3.5t+TD27+Spec.+Sheet.pdf pdf (3.6 MB)
