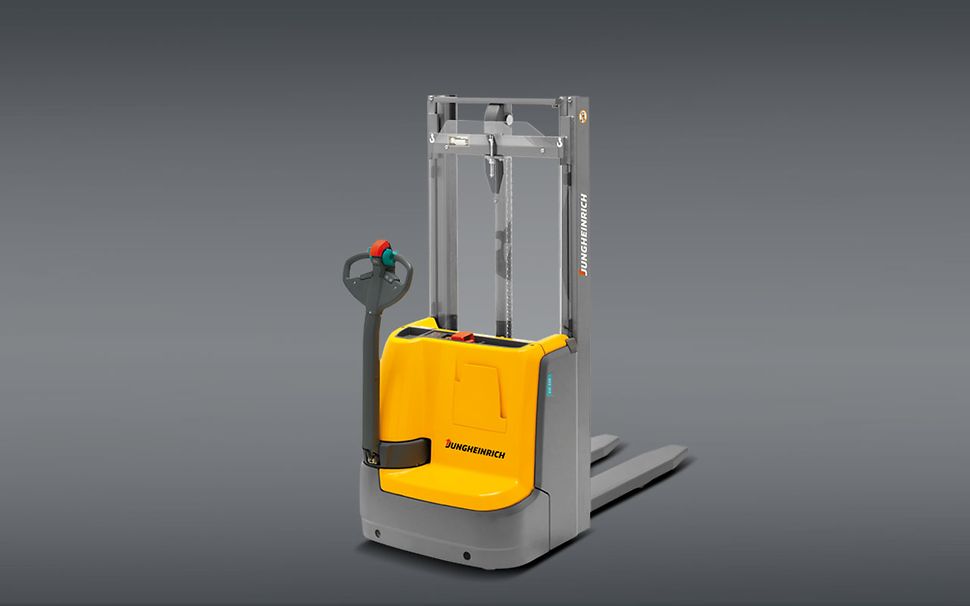

Electric pedestrian stacker 1000 / 1200 kg

2,900 - 3,373 mm
1,000 - 1,200 kg

Powerful and economical due to maintenance-free 3-phase AC drive motor
Manoeuvrable and compact through very short front end length
Extremely space-saving and safe with tiller in upright position using crawl speed button
Sensitive lifting and lowering from the tiller through adjustable speed range of hydraulic motor

EJC 110n/ 112n/ B12n

The pedestrian stackers of the EJCn Series 1 show their strength whenever transporting over short distances and stacking up to a lift height of 3,600 mm. The optimised efficiency factor ensures high speed and excellent acceleration in every situation – the best preconditions for fast, efficient goods throughput. Another advantage: liftCONTROL. This enables the operator to pick up loads accurately and sensitively. In particular, this makes the depositing of large loads in narrow racking easier. The remarkably low noise development during slow lifting also makes work easier for the operator. Proportional hydraulics ensure gentle depositing of the load on the floor or in the racking.

Features

Innovative 3-phase AC technology

High efficiency factor with excellent energy management.
Powerful acceleration.
Quick change in travel direction without the usual “pause for thought”.
No carbon brushes – the drive motor is maintenance-free.

Long operating times

Energy-saving 3-phase AC technology in combination with battery capacities up to 160 Ah (VCI 160 Ah) ensures long operating times.
Integrated charger (24 V / 30 A) for wet and maintenance-free batteries for easy charging at any mains socket.

Efficiency

Intelligent drive and steering technology
Long operating period with lead-acid battery
Lithium-ion technology

Comfortable depositing and retrieval

Precise and gentle depositing of loads with Jungheinrich speed-controlled hydraulic motor.
Low noise development during slow lifting with liftCONTROL.
Gentle depositing of load through proportional hydraulics.
Long safety tiller for adequate distance between operator and truck.

Informed at any time

Battery discharge indicator (3-colour light emitting diode) with lift stop.
CanDis information display (optional) with additional operating hour display and fault code memory.
Activation of truck via PIN code and selection of 3 travel programs through CanCode (optional).
Adjustable travel parameters through CanDis and CanCode (optional).

Comfortable travel

The pre-set speed on the travel switch is maintained for every travel situation.
The operator is able to choose between 3 different travel programs (optional).
Regenerative braking when travel speed reduced.
Very low noise level during travel.

Additional equipment

Battery discharge indicator/operating hourmeter.
EJC B12n is an optional model to be used for differing working conditions with flexibility for switching pallets. It is equipped with straddle supporting arms and forged forks. As with a counterbalanced truck, it can be used for different sizes of pallets or open / closed pallets.

Gallery

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJC B12n	1,200 kg	3,373 mm	6 km/h	1,905 mm	24 V
EJC 110n	1,000 kg	3,373 mm	6 km/h	1,787 mm	24 V
EJC 112n	1,200 kg	3,373 mm	6 km/h	1,787 mm	24 V
