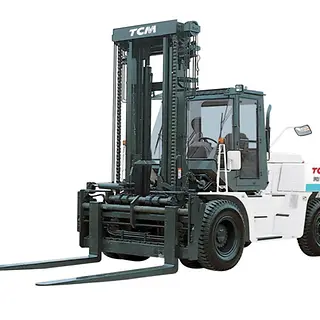

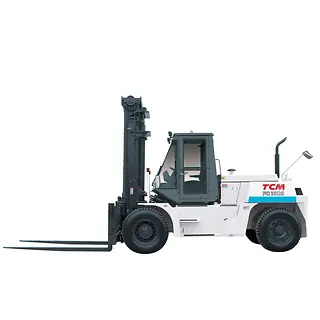

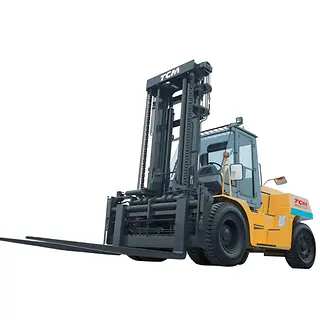

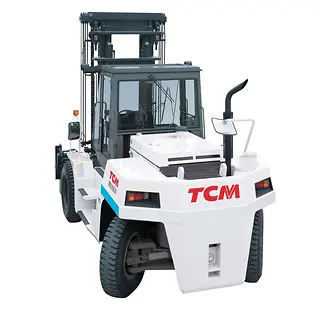

TCM FD100-160

Heavy-Duty Forklift trucks with reliable manoeuvrability and safety. Superb performance under hardworking conditions. The truck comes with Innovated Engine, 6BG1T diesel engine has the performance to meet the emission levels required in Stage II/Tier 2 emission control standards in the U.S. (EPA), Europe and Japan.

Features

Excellent performance, powerful lifting capacity

Constructed with a low centre of gravity frame that optimises vehicle balance and stability during lifting.
That means a greater load capacity with much greater stability.
The high-torque, high-power engine maintains a stable lift speed regardless of the load, increasing productivity.

Smooth Running

The high-power engine and the high-performance transmission are perfectly matched to produce an extremely smooth start/acceleration as well as excellent traction even on uphill slopes.
Excellent braking and stopping control are provided by a robust and reliable due-servo system.

Fully hydraulic power steering

The full hydraulic steering allows for effortless steering even if the truck is in a stationary position.

Power-train

The full floating power-train is designed to reduce vibration.
The entire power-train is supported by absorbing rubber mounts.

Easy entry and exit from an extra wide step

The enlarged foot step enables greater comfort getting on and off the truck.

High-mounted rear combination lights

The brake lights are easily visible at the top of the overhead guard. Recessed for protection, they are vibration resistant for long bulb life.

Convenient maintenance access

Maintenance is simplified with TCM Forklift Trucks, thanks to easily accessible engine covers and removable side panels. The tool-free design ensures that panel removal is quick and easy, allowing for hassle-free inspections and service.

Atomatic fork and gear security

For enhanced safety, the fork automatically locks when the ignition is turned off, staying firmly in place even if accidentally bumped. Additionally, a neutral safety lock ensures the forklift truck cannot start if left in gear.

Model Overview

Model	Load capacity	Lift height	Overall length
TCM FD100-3H	10,000 kg	3,000 mm	4,285 mm
TCM FD115-3	11,500 kg	3,000 mm	4,285 mm
TCM FD120-3	12,000 kg	3,000 mm	4,285 mm
TCM FD135-3	13,500 kg	3,000 mm	4,545 mm
TCM FD150S-3	15,000 kg	3,000 mm	4,545 mm
TCM FD160S-3	16,000 kg	3,000 mm	4,685 mm

Downloads

FD100-160S-3+brochure_FS06-91K_E.pdf pdf (5.4 MB)

FD100-160S-3+spec+sheet.pdf pdf (2.0 MB)
